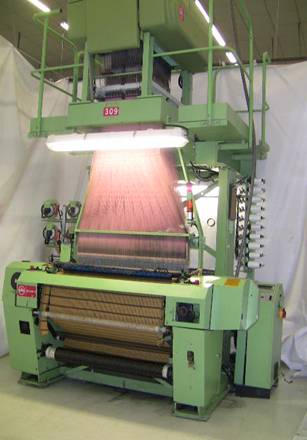

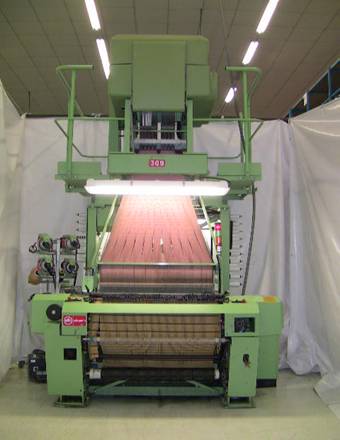

Machine Number	309
Model	Mugrip MBJ3 1/1150
Serial	A2003/14627H-110
Harness Type	Satin
Location	Mexico
Year	2003
Year of Harness	2005
View Video:

ADVANTAGES TO RAPIER LOOMS:
• More productive per Square Mt, less factory space!!
• Servo Motor for warp beam.
• Servo Motor for Pick control.
• Digital warp sensor controlling up to 30 denier warp denier.
• Automatic start and weft fixer.
• 50% less operator vs mugrip.
• Lower energy cost vs small loom of 1 Mt. Guaranteed Low weaving defects! and jaquard mistakes.
• Staubli Jaquard is the Leader in the technology.
• Jaquard will not need to use floppy-can be sent directly via IP to the loom.
• Labels ready from the loom due professional thermofixing.

CHARACTERISTICS
• Hooks: 640
• Weft insertion by rapier: 8 colors
• Digi-Kast electronic warp let-off control
• Jacquard machine Muller
• Tipy SPE 1536/1152 T
• Magnet Cards: 32
• Magnets per card: 20
• Springs Harness
• Thermo fixation devices with electronic control
• Mudata display: version 4
• Weft accumulator (IRO): 8 units
• Latest weft extention control
• Use weft color selector
• Slitting elements Muller 50 Units
• Motor brake with slow motion
• Control cabinet
• One warp beams
• One shaft winding
• Warp sensor regulator
• Loom will be shipped with yarn drawn-in (warp with 8,496 threads) 11, 592
• Speed: up 600 RPM
• Repetitions harness: 10
• Width repetition: 100mm
